Inside a Micro-Pavé Workshop: Why Stones Keep Falling Out

Intro
Micro-pavé looks delicate and precise. Tiny diamonds (often 0.6–1.5 mm) sit shoulder-to-shoulder, each held by minute metal beads. When done well, it’s stable and sparkly. When done poorly, stones keep falling out. In this article I explain why that happens, with concrete examples and practical fixes you can use in the workshop or when inspecting jewelry.

How micro-pavé is supposed to hold a stone

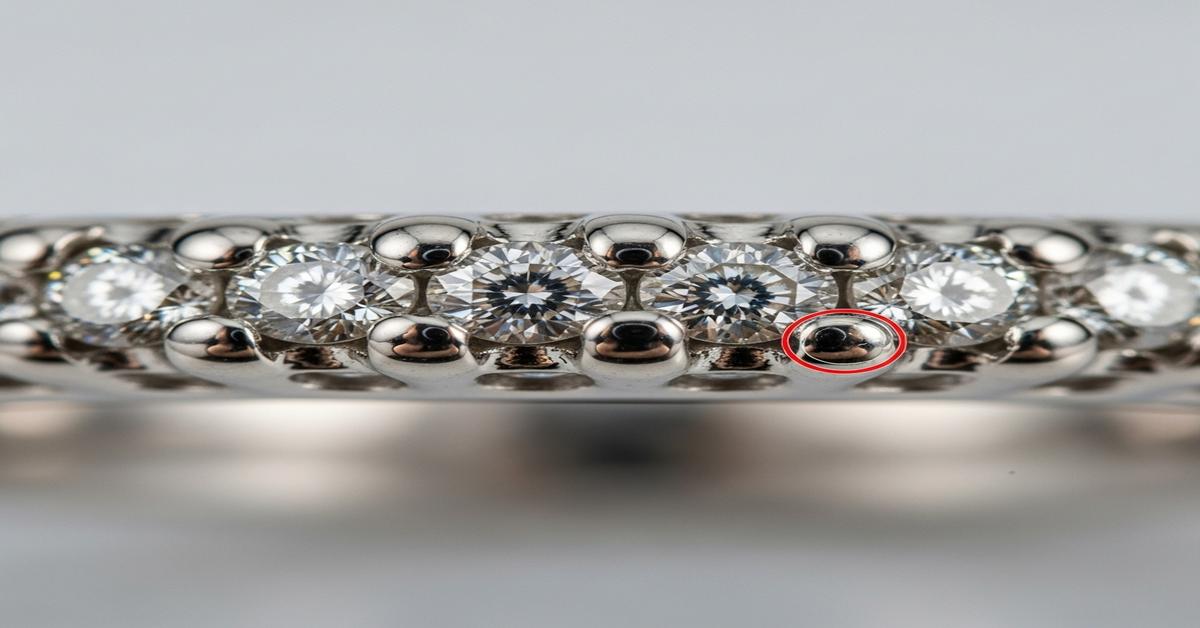

In micro-pavé the setter drills a seat, places the stone so its girdle rests on that seat, then raises and pushes tiny beads of metal against the girdle to lock the stone in place. The bead shape, height and width create friction and mechanical hold. For a 1.0 mm round melee, each bead may be only 0.2–0.4 mm across. That small size means tolerances and metal behavior matter a lot. If any one of the variables is off, the retention fails.

Root causes: why stones fall out

• Poor seat fit. If the drilled seat is too large or too deep, the stone doesn’t sit flush. A stone that rocks will transfer force to tiny beads and shear them off. Practical rule: seat diameter should match stone diameter within about 0.02–0.05 mm. Measure stones with a digital caliper or micrometer before drilling.
• Undercut and seat profile errors. Seats with incorrect profile leave the girdle unsupported. A correct seat mirrors the girdle curvature. Too-shallow seats let stones sit proud; too-deep seats expose girdle below support, both increasing bead stress.
• Beads too small or thin. Setters sometimes reduce bead size for looks. Beads that are too narrow or low lack cross-sectional area and shear under impact. For example, a bead reduced from 0.35 mm to 0.20 mm loses a lot of shear strength.
• Wrong alloy or annealing. Gold alloy choice changes strength. 18k yellow gold is softer than 14k and will deform or flow under stress faster. Over-annealing softens metal further. Conversely, platinum 950 holds beads very well but requires different tool technique. Choose the alloy to match design and expected wear.
• Excessive finishing and plating. Aggressive polishing or repeated rhodium plating can thin beads and round edges. Rhodium layers are very thin (often under 2 microns) but repeated rework often includes mechanical polishing that removes bead mass.
• High production speed / inexperienced setters. In volume shops setters may rush, drill inconsistent seats, or use only one bead profile for many stone sizes. Inconsistent bead height, uneven bead pressure, and poor inspection are common failure points.
• Stone damage or thin girdles. Stones with chips or weak girdles won’t withstand bead pressure or impacts. Lab-measured melee quality varies; always check for girdle integrity. A thin girdle is easier for a bead to cut into and lose mechanical purchase.
• Impact and wear. Micro-pavé stones project tiny contact points; repeated knocks concentrate stress on beads. Over time beads fatigue and shear. Ultrasonic cleaning can also dislodge stones that were marginally set because the cavitation applies dynamic forces.

Why the workshop process matters — a step-by-step look

• Drilling the seat. Use the correct burr and RPM to avoid chipping metal and to produce a clean seat. A bur that wobbles or is undersized creates tapered holes and loose fit.
• Checking the fit. After drilling, drop the stone into the seat with tweezers and check with a loupe at 10x. The girdle should contact the seat evenly; any light under one side means the stone will rock.
• Bead formation. Raise the bead using a graver and push with a beading tool or burnisher. The bead must be formed neatly and then burnished against the girdle to lock the stone without cracking the girdle. Over-hammering causes stress fractures in some melee.
• Finishing. Clean but don’t over-polish beads. A gentle final burnish gives the bead a smooth bearing surface without removing metal mass.

Practical fixes and prevention

• Design for durability. For rings or items that see daily wear, use slightly larger beads or increase the number of beads per stone. Consider using 14k white gold or platinum 950 rather than 18k for heavy-wear pieces.
• Control tolerances. Match seat diameter to stone diameter within 0.02–0.05 mm. Cut seats to support about half the pavilion depth so the girdle is well supported. Measure stones before setting—don’t rely on visual size alone.
• Quality control. Inspect each stone at 10x after setting, and after final polishing. Use a micrograph if available for production lots. Spot-check set tightness by attempting to rotate the stone gently with a burnisher—if it moves, rework the setting.
• Proper alloy handling. If you must anneal, do so locally and sparingly. Avoid heating beads repeatedly during repairs. When soldering near pavé, mask and protect the area to reduce flux and heat exposure.
• Repair options. Re-tip beads: grind down the bead and raise a new one. Re-seat and reset if the seat is wrong. For badly worn rows, consider repavé: remove the row, redrill precise seats, and reset with fresh beads. Use PUK or micro-welding to add metal when needed instead of relying on excessive reshaping of old beads.
• Maintenance advice for customers. Recommend avoiding ultrasonic cleaning for fragile or marginally set pavé. Suggest gentle soapy water and a soft brush instead. Advise customers to have pavé inspected every 6–12 months, sooner if the piece takes knocks.

Final practical notes
Micro-pavé is a balance between aesthetics and mechanics. Tiny beads are beautiful but have less margin for error. The main takeaways are: get the seat right, keep bead cross-section adequate, choose the right metal, and inspect at every step. In a busy workshop, enforce measurement standards and slow the process down where finesse matters. That is the only reliable way to stop stones from becoming a regular repair job.
